Linear Type Food Grade Belt Conveyor

//Linear Type Food Grade Belt Conveyor

Linear Type Food Grade Belt Conveyor Introduction

Belt conveyor is a kind of material transferring system equipment which can transport various lightweight materials, such as bulk material, cartons, bags, and etc. Linear type food grade belt conveyor is one of the most popular conveyor types in food conveying use today. These conveyors have a sheet metal frame with pulleys at either end. The belt slides across the solid metal frame, giving it the name slider bed. It’s an inexpensive, quiet, easily-installed conveyor.

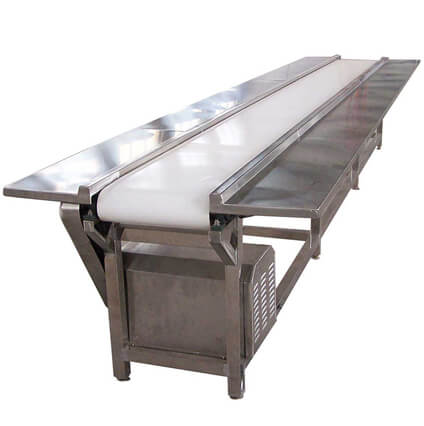

linear belt conveyor
food belt conveyor

Features of Linear Type Food Grade Belt Conveyor

* Steady conveying, adjustable speed or adjustable height as your need.
* It has low noise which is suitable for a quiet work environment.
* Simple structure, easy and convenient maintenance.
* Standardization of components.
* Less energy consumption and low cost.
* No sharp corners or danger to staff, and you can clean the belt freely with water.

Manufacture Process of Belt Food Conveyor

Selecting Material
Selecting Material
Drilling
Drilling
Welding
Welding
Polishing
Polishing
Installing
Installing
Testing
Testing

Application of Linear Type Food Grade Belt Conveyor

1. Convey powder, granular: wheat powder, coconut powder, plastic granules and so on.
2. Convey finished product: potato chips, snacks food, puffed food and so on.
3. Convey box, tray, pellet, parcel, etc.
4. Sorting and inspecting fruit like date, apple, etc.
5. Also can use in electric, toy, daily chemical, pharmaceutical, posts, and telecommunications and any other industry fields.

Technical Parameter of Linear Type Belt Conveyor

Model
ALC-400
ALC-500
ALC-650
ALC-800
ALC-1000
ALC-1200

Width of Belt

(mm)/W
400
500
650
800
1000
1200

Length and Height of belt

conveyor

(mm)/L /H

According to the client’s requirements, we can customize.
Belt Material
Rubber, PU, PVC, etc.
Frame Material
Carbon steel, stainless steel, aluminum.
Driving Mode
Gear motor, electric-roller
Speed-adjusting Model

Frequency control, stepless speed change.

Accessories
We can add baffles and skirts.
Conveying
In addition to the conveying of materials for the ordinary, but also to meet the oil, corrosion-resistance, anti-static materials, such as the conveying of special requirements.
